Over the past 10 years of working on Easy Weaving with Little Looms, I’ve helped a lot of new weavers find the tools and equipment they need to get started successfully weaving on a rigid-heddle loom. Whether you’re buying a brand-new loom or getting one secondhand, it’s important to know not just what tools you need, but also why you need them and how to use them. So let’s go over it: What do you actually need to get started weaving on a rigid-heddle loom?
The Loom

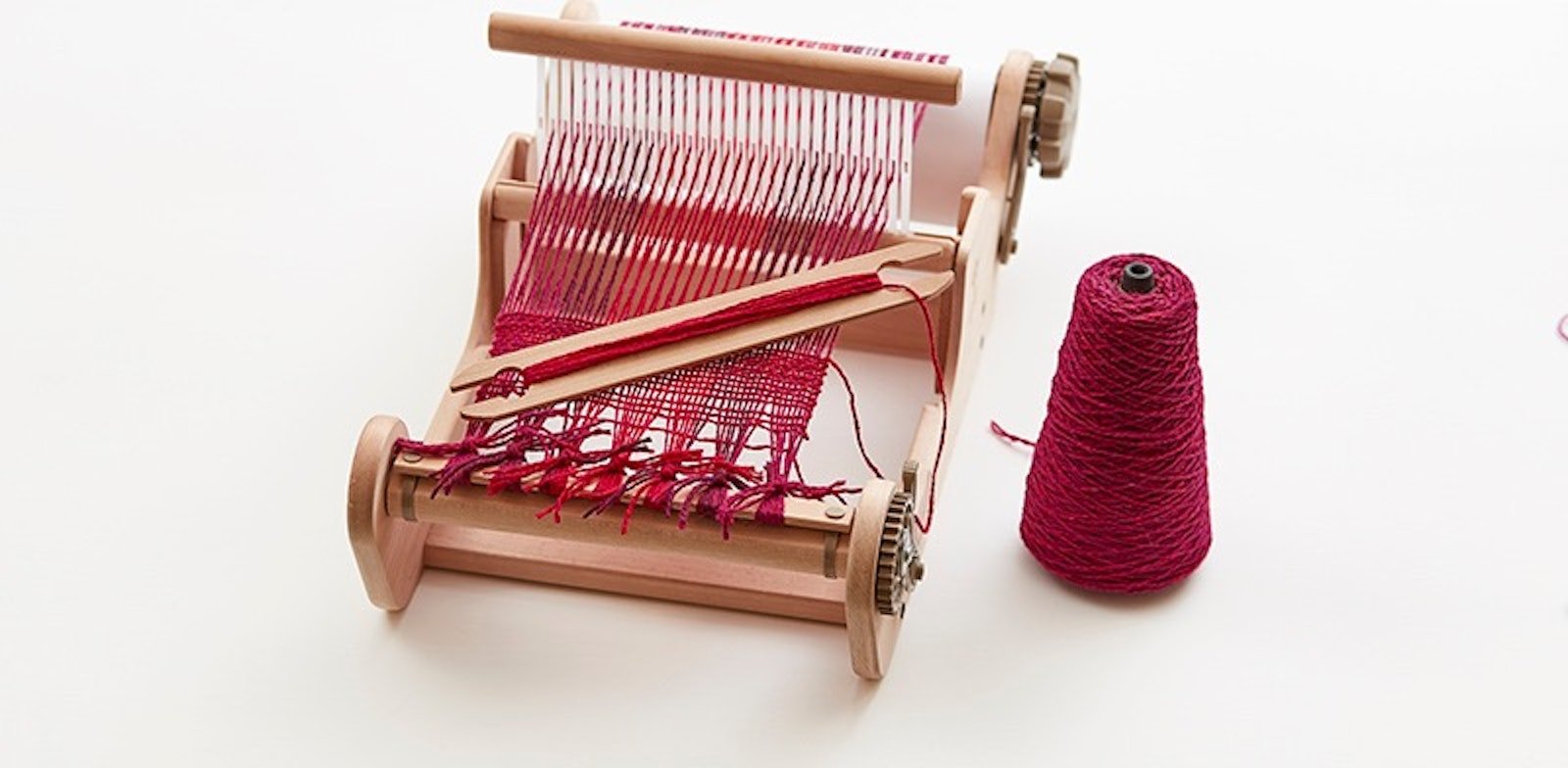

Photo courtesy Long Thread Media
This is what it’s all about! A loom holds the warp in place and under tension, ready for weaving. Your loom should have a removable rigid heddle that has slots and holes for the warp to pass through. When the heddle is raised or lowered, some yarns go up and down with it and others stay in place. Dent describes how close the warp threads are to each other when they pass through the reed (expressed in spaces per inch or other unit). The area where the heddle rests in the up, down, or neutral position is called the heddle block.
Warping Tools
To get started warping your rigid-heddle loom, you need three basic tools: a warping peg, a loom clamp, and a threading hook.
Warping Pegs and Loom Clamps

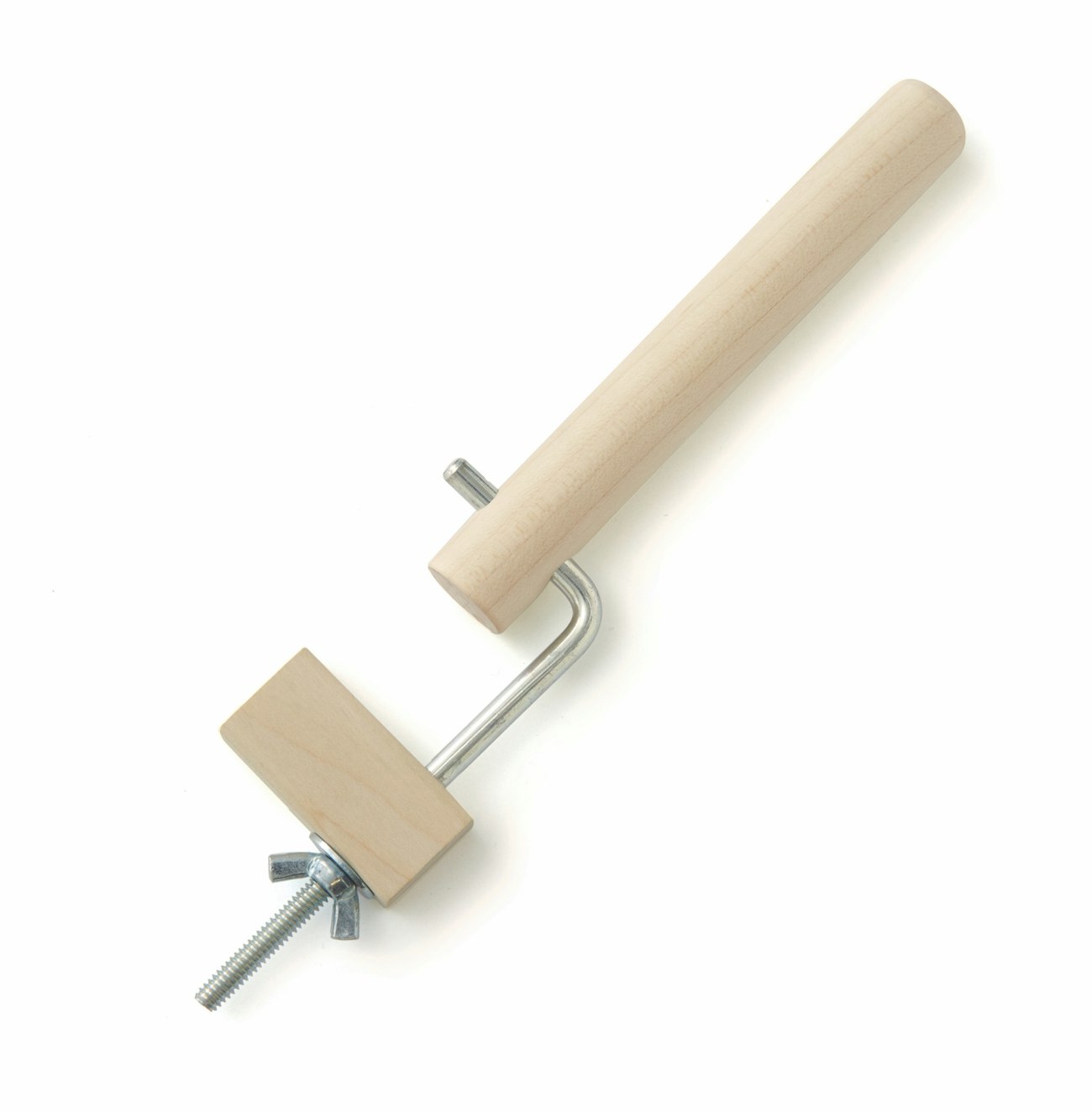

Warping pegs are one of the most important tools needed for direct warping. Photos by Joe Coca except where noted

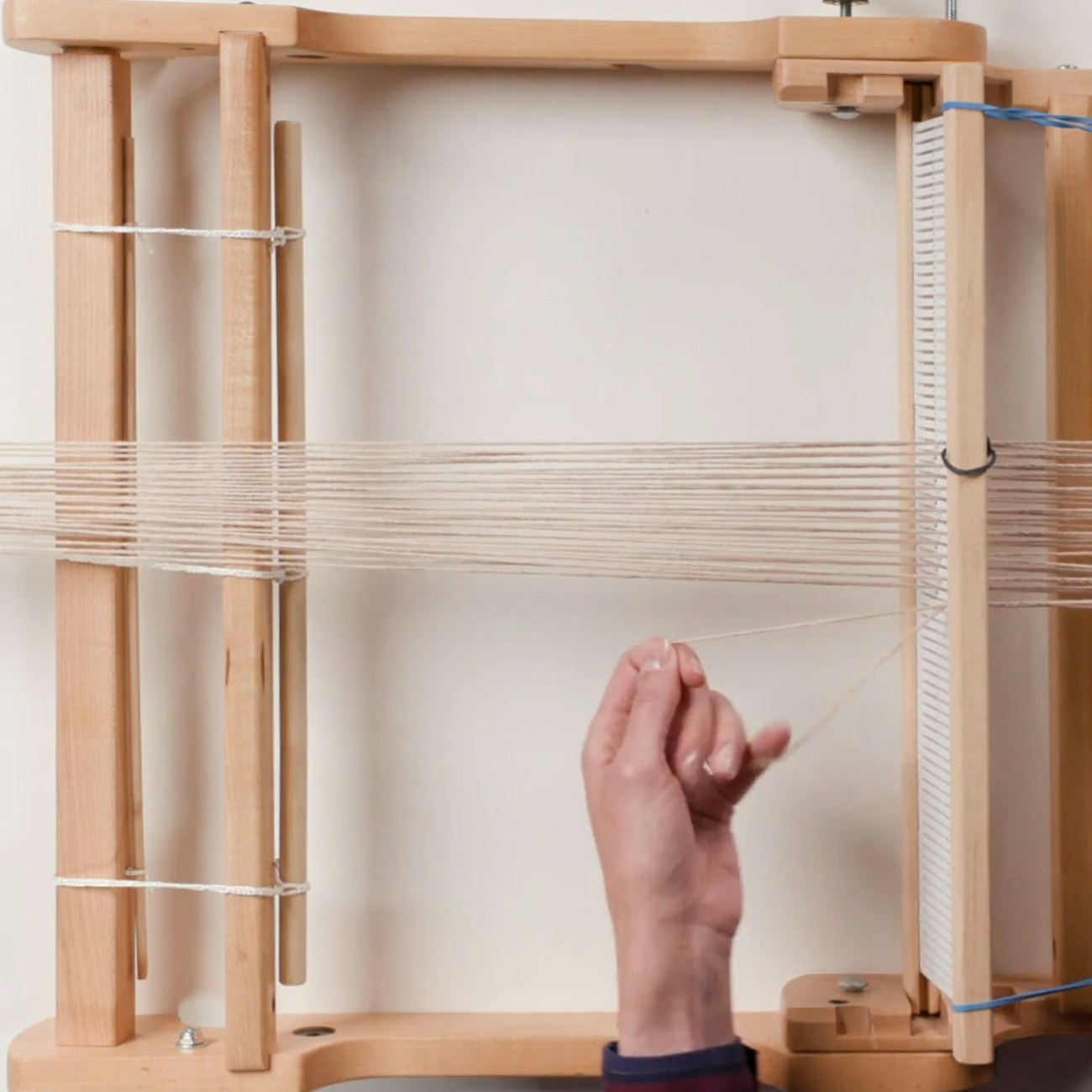

In order to weave you must be warped. (Pun intentended—with weavers, the pun is pretty much always intended.) Many rigid-heddle projects are started by direct warping, or tying the warp yarn directly to the loom and measuring it from there. Measuring the distance from the back of the loom to a fixed warping peg, such as the one shown above, makes sure that all of the ends are the appropriate length. Along with a warping peg, you’ll also want a loom clamp to hold the loom in place. A loom clamp looks like a warping peg with the wooden peg removed.
Threading Hooks

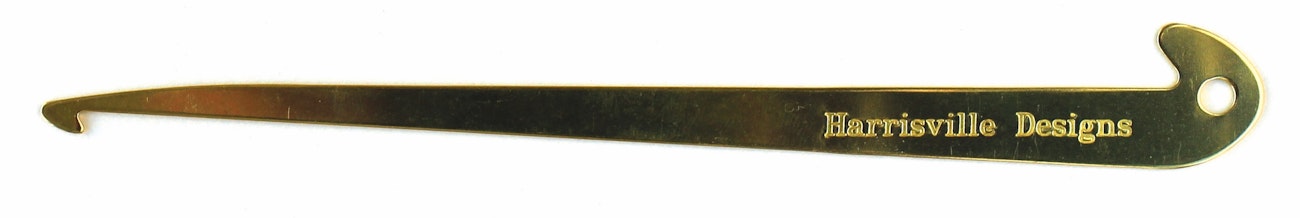

Threading hooks help you carry threads from the loom to the warping peg and to pull threads through the heddle’s slots and holes.
No matter what kind of warping method you choose to use, you will need a threading hook (also sometimes called a sleying hook) to pull the warp through the slots and to the warping peg during direct warping, and then later to pull individual warp ends through the heddle's holes. A double-sided threading hook, like the one shown above, has a deep hook on one side—for extra security when carrying the warp through the slots and to the warping peg—and a smaller, narrower hook on the other side—for manuevering threads through the heddle’s small holes.
Weaving Tools
Two basic tools are all you need for weaving: a shuttle and one or more pick-up sticks.
Shuttle
Shuttles, such as the stick shuttle shown here, hold the weft yarn as you weave.
Once you’re warped, you’re ready to weave, which you’ll do by placing your weft yarn between your warp threads. A shuttle holds the weft yarn as it passes through the warp; it’s part yarn storage and part delivery system. The most common shuttle for rigid-heddle weaving is the stick shuttle, a simple piece of wood with a notch on each end. Stick shuttles can also be used to help beat yarn into place as you weave.
Pick-Up Stick

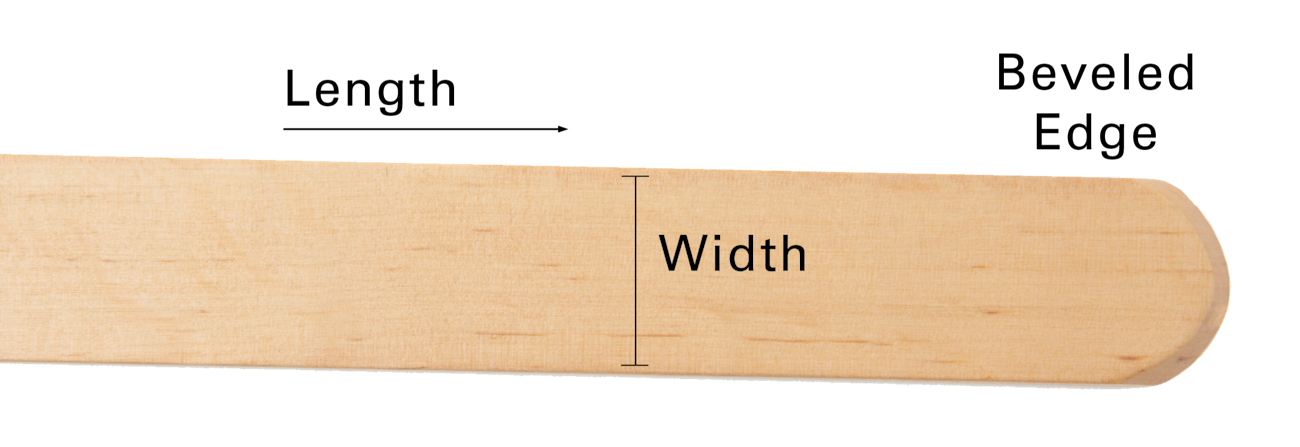

Weavers use pick-up sticks to create textured weaves and more complex patterning in their cloth.
Pick-up sticks are special flat, smooth pieces of wood with beveled edges designed to lift and hold some threads up or down. They are used in some advanced and hand-manipulated weaving techniques. Technically you don’t need a pick-up stick to weave on your rigid-heddle loom, but most new loom kits come with one, so it's good to know what they’re used for.
Assorted Notions
Weavers use blunt tapestry needles to hemstitch and to fix errors.
Along with the weaving-specific tools I’ve mentioned already, you’ll want to have an assortment of sewing notions. These are the notions I keep in my weaving kit:
- Sharp scissors—I recommend a small pair for snipping yarn tails close to the cloth and a large pair for cutting cloth off the loom or cutting projects apart.
- Blunt tapestry needles for hemstitching and fixing errors—you can use straight tapestry needles or ones with bent tips like those shown above.
- Measuring tape—make sure to get a flexible tape designed for sewing rather than the metal ones found at hardware stores.
- T-pins or sewing pins with large heads—you’ll need these for fixing broken warp threads and for holding your folded hem in place during hemming. I also use mine to mark on the side of the cloth where I last measured to.
- Sewing needles—use these for fixing errors and for hemming; you can also use a sewing machine for hemming.
Now Let’s Get Started!
Once you’ve gathered all your tools, equipment, and yarn, it’s time to get warped! (Again, pun intended.) You can learn everything you need to know about how to direct warp your loom here, including a step-by-step video explaining the whole process.
Happy Weaving!
Christina
