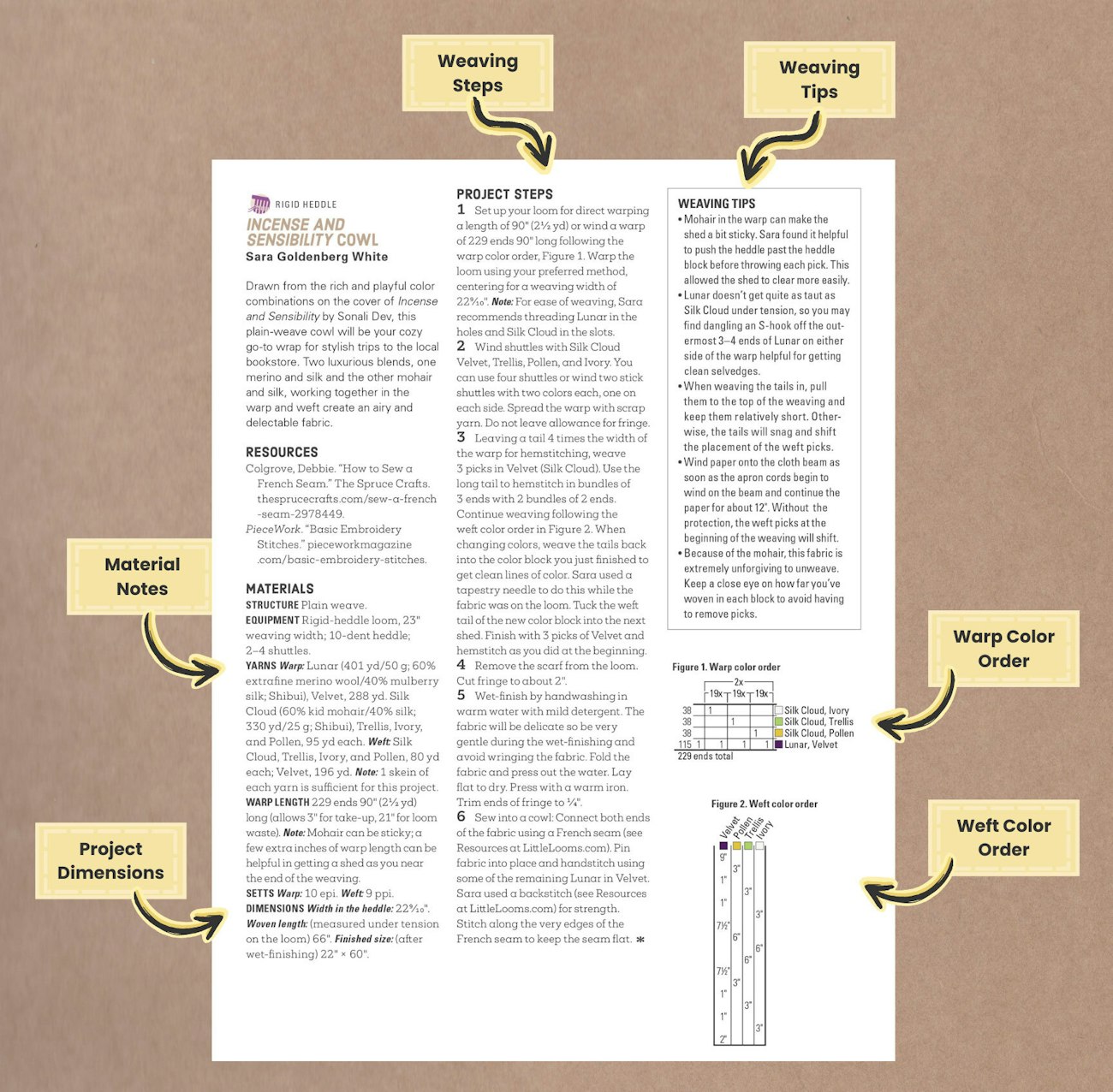

After you’ve learned how to warp and weave on your rigid-heddle loom, the next step is to learn how to weave a basic weaving pattern. In the patterns in Little Looms, like the one you can see below, you'll find information about what materials you need to weave the project; the size of the project on the loom and after finishing; step-by-step instructions to walk you through warping, weaving, and finishing; tips from the designer; and sometimes there will also be different charts and figures.
The first time you see a warp color order or weft color order, figuring out how to read it can be confusing. However, once you learn how to interpret these figures, reading patterns is a cinch! So let's walk through the basics of how translate the most common weaving charts and figures.
Reading the Warp Color Order

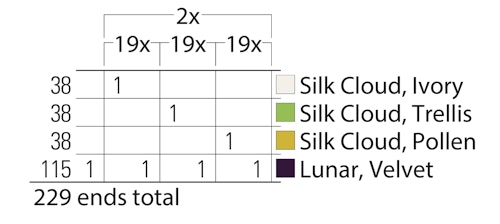

The warp color order tells you in what order you need to thread your heddle and is read from right to left. Each row in the warp color order represents a different color, and the numbers represent the number of ends to thread of each color before you move to the next. At the end of each row, you'll see the total number of ends needed for each color. To save space, wherever a section of the draft is repeated, a bracket is placed above it with the number of times to do that section. Let’s look at the warp color order for the Incense and Sensibility Cowl by Sara Goldenberg White as an example.
Reading the warp color order from right to left, there are two tiers of brackets: three lower brackets labeled as 19x (meaning you repeat the threading in those areas 19 times) and a higher bracket that encompasses all three of the lower brackets labeled 2x (meaning you’ll repeat those lower brackets in order twice.)
You would thread this project as follows:
- 1 end Velvet, 1 end Pollen, repeat this 19x
- 19 repeats of 1 end Velvet, 1 end Trellis
- 19 repeats of 1 end Velvet, 1 end Ivory
- Repeat the color order under the 19x bracket a second time
- 1 end Velvet
Reading the Weft Color Order
A Basic Weft Color Order Chart

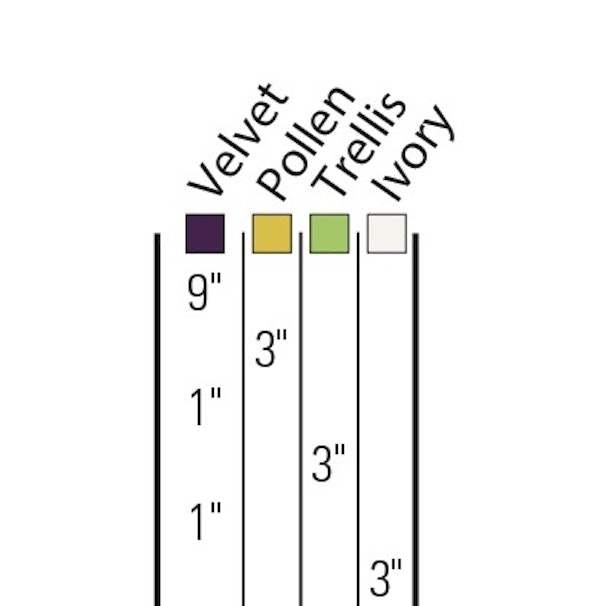

Some projects might also have a weft color order. These are read from top to bottom (opposite the direction of weaving). The numbers in the weft color order chart represent either the number of picks or the total length to weave of a specific weft color before changing to a new one. Below is a section of the weft color order for the Incense and Sensibility Cowl.
Sara Goldenberg White's Incense and Sensibility Cowl from the Winter 2022 issue.
It uses woven length instead of a specific number of picks to indicate how much you need to weave before changing wefts. This particular weft color order does not have brackets, so you would not repeat any sections. You would weave the cowl as follows:
- 9" of Velvet
- 3" Pollen
- 1" Velvet
- 3" Trellish
- 1" Velvet
- 3" Ivory
Weft Color Order Chart with Brackets
If a weft color chart has brackets, you’ll treat them the same as you would the brackets in the warp color chart.
The Casual Comfort wrap by Tammy Bast from the Fall 2022 issue.

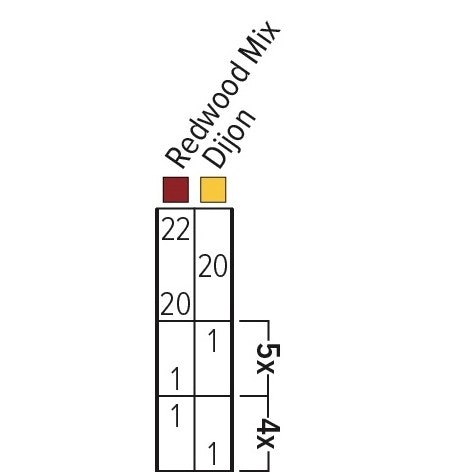

Above is a short section of the weft color order for the Casual Comfort wrap by Tammy Bast. You’d weave your weft colors in the following amounts and orders:
- 22 picks Redwood Mix
- 20 picks Dijon
- 20 picks Redwood Mix
- 5 repeats of 1 end Dijon, 1 end Redwood Mix
- 4 repeats of 1 end Redwood Mix, 1 end Dijon
When weaving projects with a complicated weft order, keep a copy of it near your loom and use a sticky note to cover the portions you’ve already woven so you always know where you are in your weaving.
MORE ABOUT READING PATTERNS: For a more indepth look at patterns, including how to read a sley chart, check out our full guide How to Read a Rigid-Heddle Weaving Pattern.
While they might seem confusing if you don’t know what these figures are or how to read them, once you understand warp color orders and weft color orders, you can read a lot of information about a project in a short time.
Happy Weaving!
Christina
